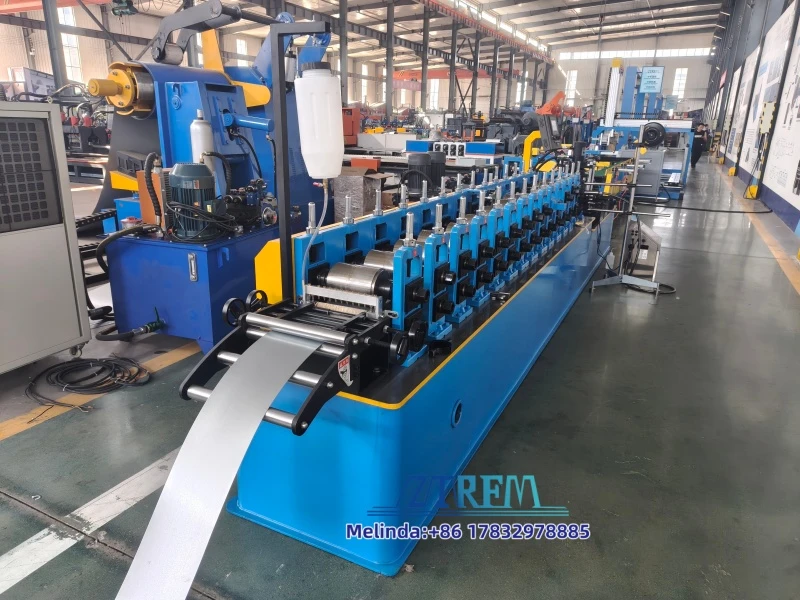

CW UW Roll Forming Machine – One Machine for Two Profiles at 40 m/min
Efficient CW and UW Profile Production with Automatic Stacking
Looking for a reliable CW UW roll forming machine to manufacture metal framing profiles efficiently? Our CW UW roll forming machine is designed to produce two different profiles on one production line, offering a practical and cost-effective solution for manufacturers of drywall framing systems and light steel construction components.
With manual adjustment of spacer sleeves and blade replacement, the machine can switch between CW and UW profile production. The entire production line operates at a working speed of up to 40 meters per minute, helping manufacturers improve production efficiency while maintaining consistent profile quality. An automatic stacking machine is also integrated into the line to streamline finished product handling and reduce manual labor.
Key Features of the CW UW Roll Forming Machine
1. One Machine for Two Different Profiles
This CW UW roll forming machine is designed to produce both CW and UW profiles on the same production line. Instead of investing in two completely separate machines, manufacturers can use one versatile system for both profile types.
This configuration helps reduce equipment investment, save factory floor space, and improve production flexibility for drywall framing and partition system manufacturers.
2. Manual Profile Changeover for Practical Operation
The machine changes between CW and UW profiles through manual adjustment of spacer sleeves and replacement of the corresponding cutting blades.
This straightforward changeover method provides a practical solution for manufacturers who need to produce two profile types without requiring a fully automatic profile adjustment system.
With the appropriate tooling and machine settings, operators can switch production according to different manufacturing requirements.
3. Production Line Speed of 40 m/min
Production efficiency is a key factor in modern metal profile manufacturing. Our CW UW roll forming machine features a working line speed of 40 m/min, supporting high-efficiency continuous production.
The line is designed to help manufacturers increase output, shorten production time, and meet the demands of drywall framing projects and building material distributors.
Actual production output depends on profile specifications, material thickness, cutting length, and operating conditions.

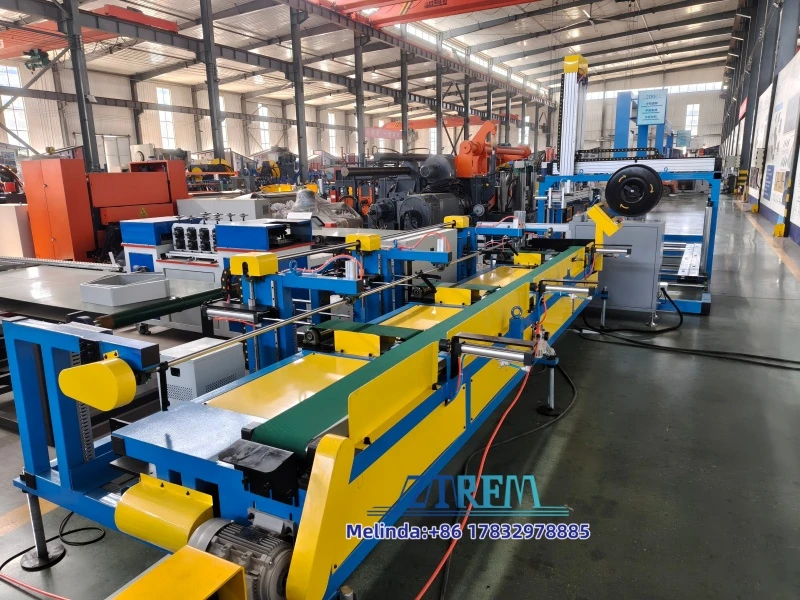

4. Automatic Stacking System for Improved Productivity

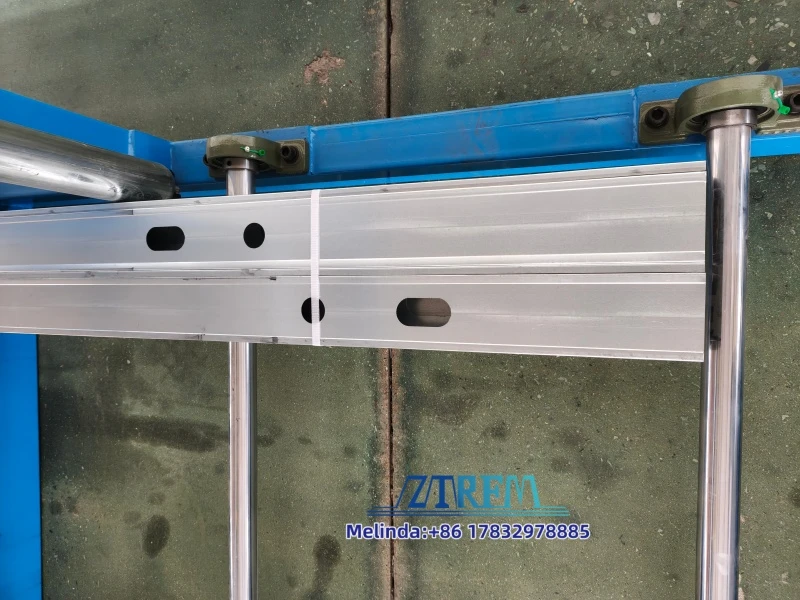

The production line is equipped with an automatic stacking machine to collect and stack finished CW and UW profiles after forming and cutting.
Automatic stacking helps reduce repetitive manual handling, keeps finished products organized, and makes subsequent packaging and transportation more convenient.
By integrating roll forming, cutting, and automatic stacking, the complete line provides a more efficient production workflow.
5. Suitable for Drywall and Light Steel Framing Systems

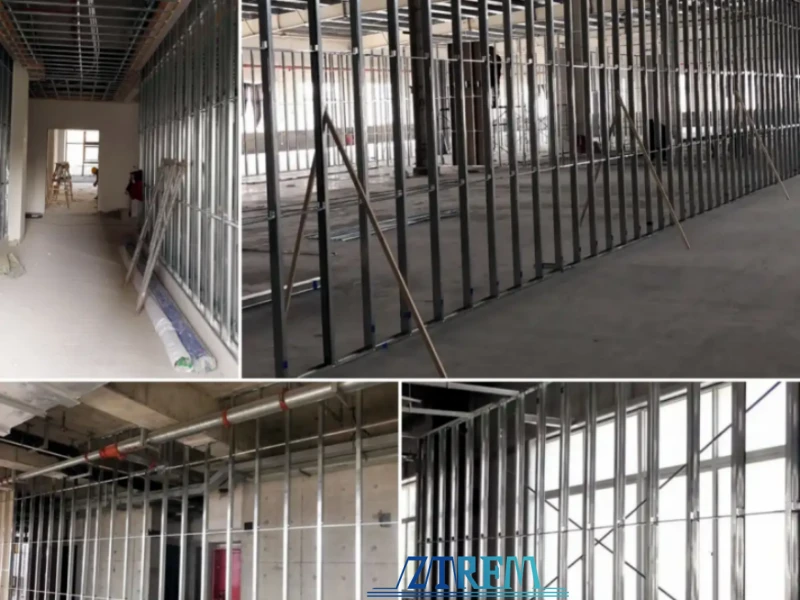

CW and UW profiles are widely used in metal stud and track systems for interior partition walls, drywall construction, and light steel framing.

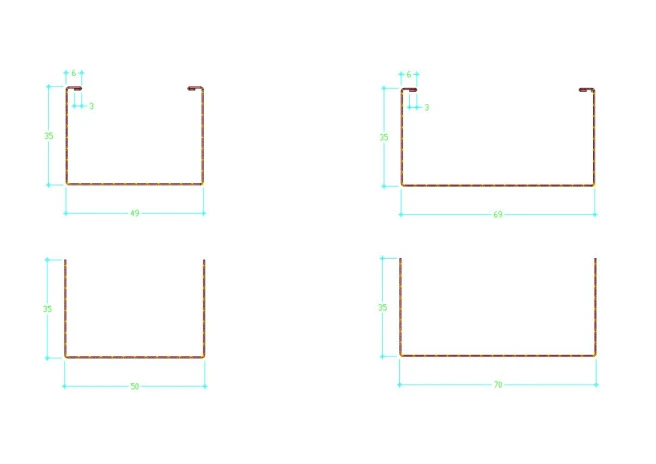

The CW profile is commonly used as a vertical stud, while the UW profile serves as a horizontal track to guide and secure the studs. Producing both profiles on one machine allows manufacturers to supply complementary framing components for construction projects.

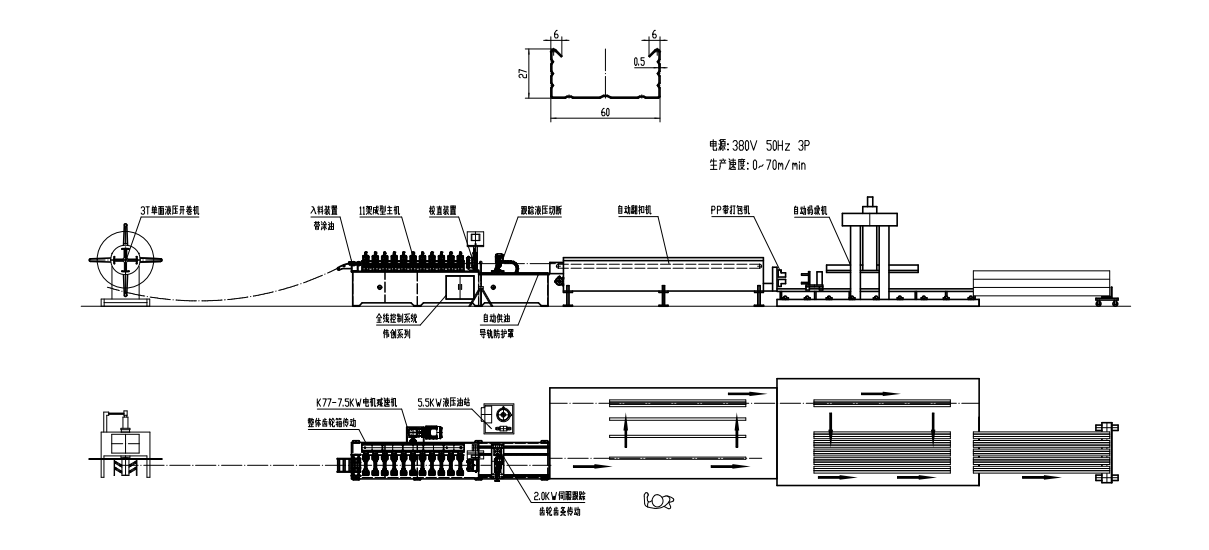

How Does the CW UW Roll Forming Machine Work?
The complete production process typically includes the following steps:

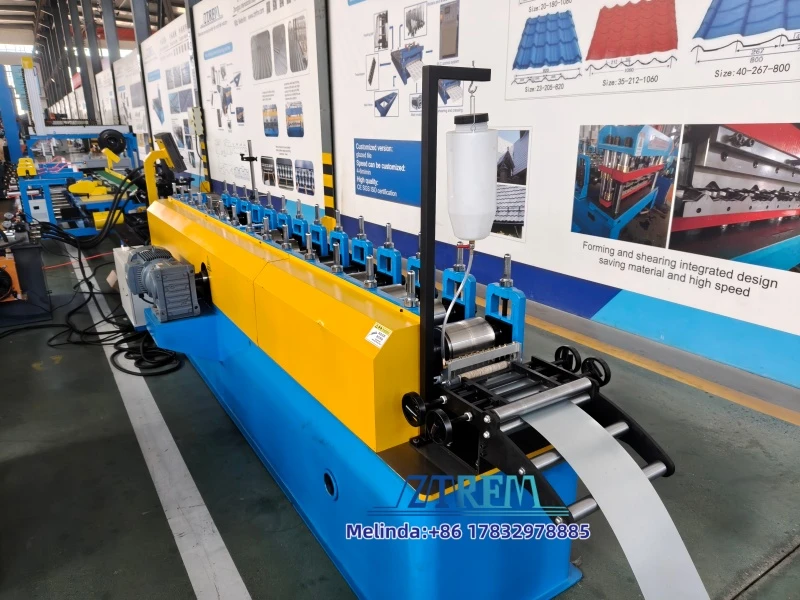

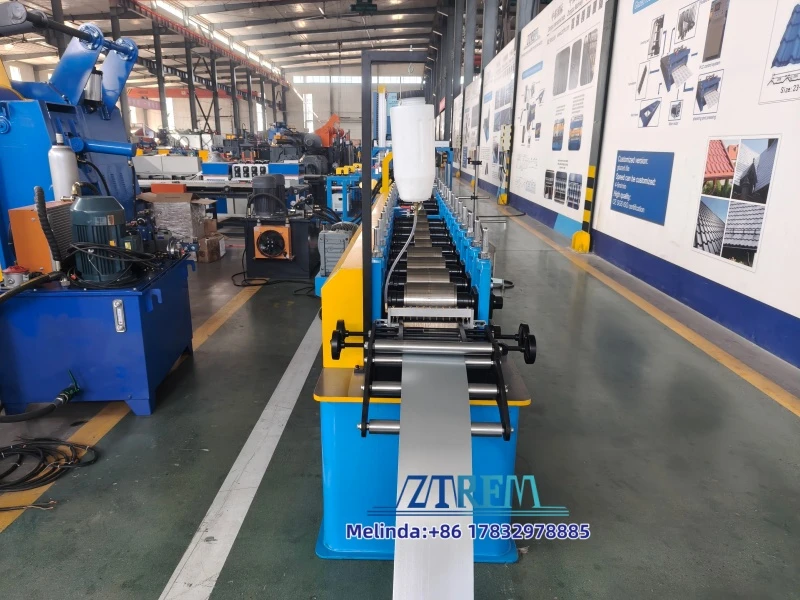

- Coil Feeding:Metal coils are loaded and fed into the production line.
- Roll Forming:The strip passes through forming stations to achieve the required CW or UW profile shape.
- Profile Changeover:Operators manually adjust the spacer sleeves and replace the cutting blades when switching between the two profile types.

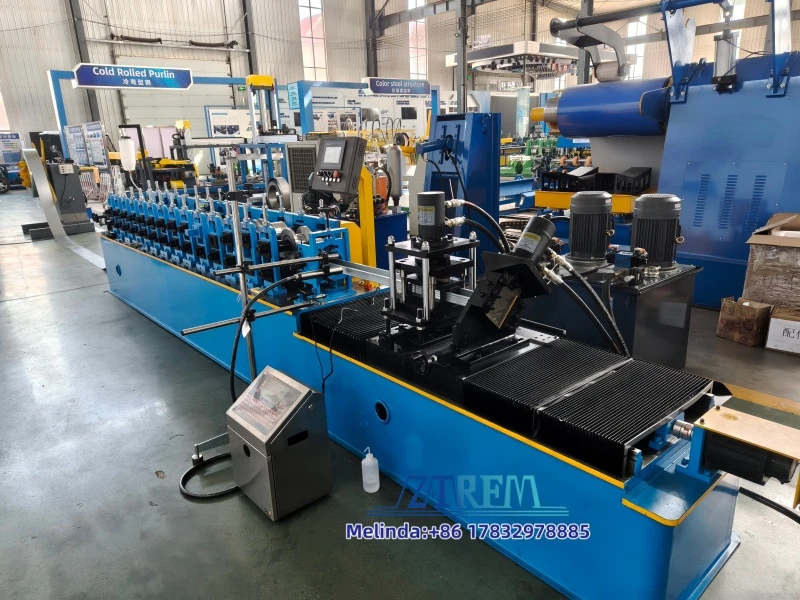

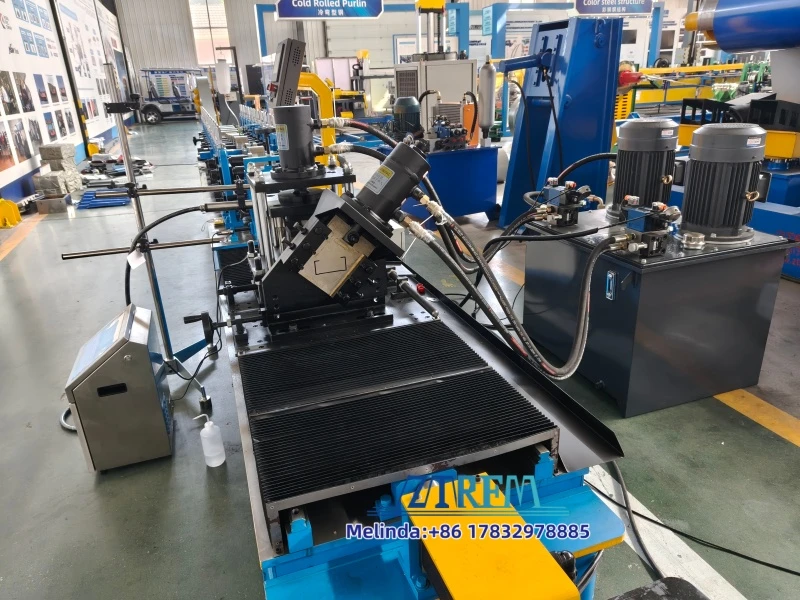

- Cutting to Length:The cutting system cuts the formed profiles to the preset length.
- Automatic Stacking:Finished profiles are automatically collected and stacked for easier handling and packaging.
Technical Highlights
| Item | Specification |
| Machine Type | CW UW Roll Forming Machine |
| Profile Types | CW Profile and UW Profile |
| Profile Changeover | Manual spacer sleeve adjustment and blade replacement |
| Working Line Speed | 40 m/min |
| Cutting System | Cut-to-length system, configured to machine requirements |
| Stacking System | Automatic stacking machine |
| Main Applications | Drywall framing, metal stud and track systems, light steel construction |
Note: Material thickness, profile dimensions, coil width, cutting method, and other technical parameters can be customized according to your project requirements.
Why Choose Our CW UW Roll Forming Machine?
- Two profiles on one line:Produce CW and UW profiles with a single machine.
- Cost-effective investment:Reduce the need for separate production equipment.
- Efficient production:Working line speed of up to 40 m/min.
- Practical changeover:Manual adjustment of spacer sleeves and cutting blade replacement.
- Automated material handling:Automatic stacking improves finished product organization and reduces manual handling.
- Flexible configuration:Machine specifications can be discussed according to your target profiles and production needs.
For manufacturers supplying drywall contractors, building material distributors, and light steel framing projects, this CW UW roll forming machine offers a practical combination of production flexibility, operating efficiency, and automated stacking.
Get a Quote for Your CW UW Roll Forming Machine
Are you planning to expand your drywall profile production capacity? Our CW UW roll forming machine provides an efficient solution for manufacturing two types of metal framing profiles on one production line, with a working speed of 40 m/min and an automatic stacking system.
Contact us to discuss your required CW and UW profile dimensions, material thickness, cutting lengths, and production requirements. We can help you select a suitable machine configuration for your manufacturing business.
Contact us today to get more information and a quotation for your CW UW roll forming machine.
