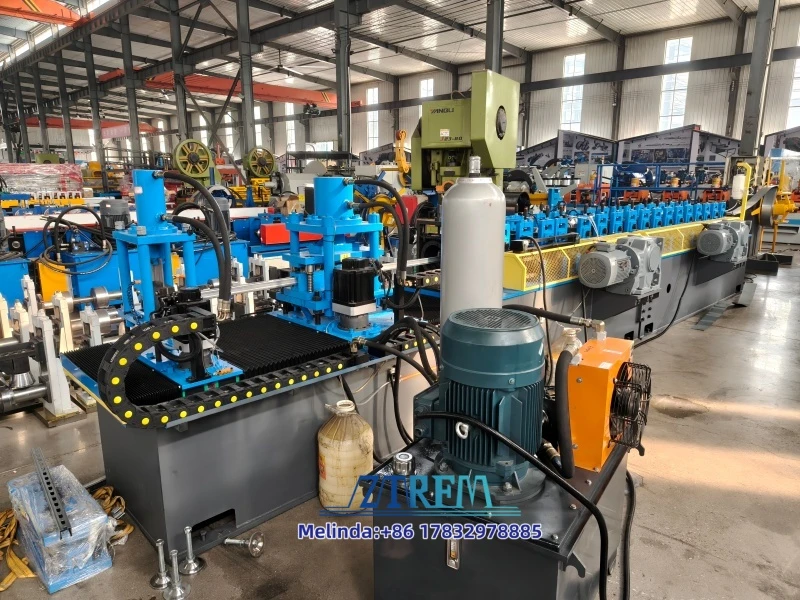

Solar Channel Machine for 41×41mm and 41×21mm Solar Mounting Channels
Our Solar Channel Machine is a compact and efficient roll forming solution designed for producing lightweight solar mounting channels in two popular sizes: 41×41mm and 41×21mm, with a material thickness of 2.0mm.
Designed for solar mounting system manufacturers, metal fabricators, and photovoltaic support structure suppliers, this machine provides a practical solution for customers who need reliable production of standard solar channels without investing in a large or complicated production line.
What Is a Solar Channel Machine?
A Solar Channel Machine is a roll forming machine specially designed to continuously form steel coils into solar mounting channels used in photovoltaic mounting systems.
Instead of manufacturing profiles through multiple individual processes, the machine gradually forms the metal strip through a series of precision-designed rollers. This allows manufacturers to achieve consistent profile dimensions, good surface quality, and efficient continuous production.
Our machine is specifically configured for producing:

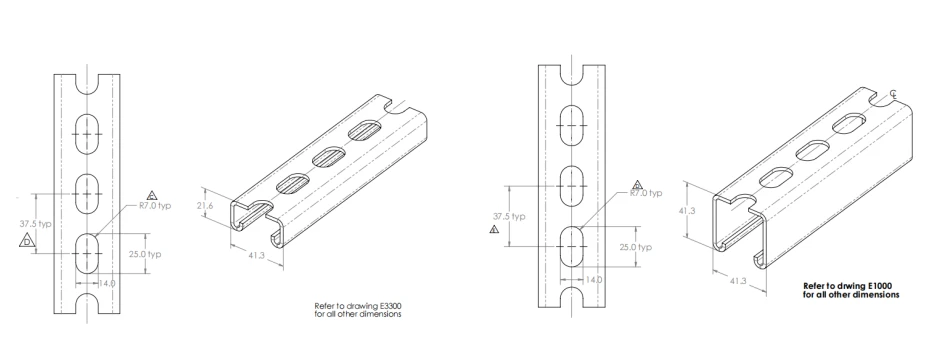

- 41×41mm Solar Channel
- 41×21mm Solar Channel
- Material thickness: 2.0mm

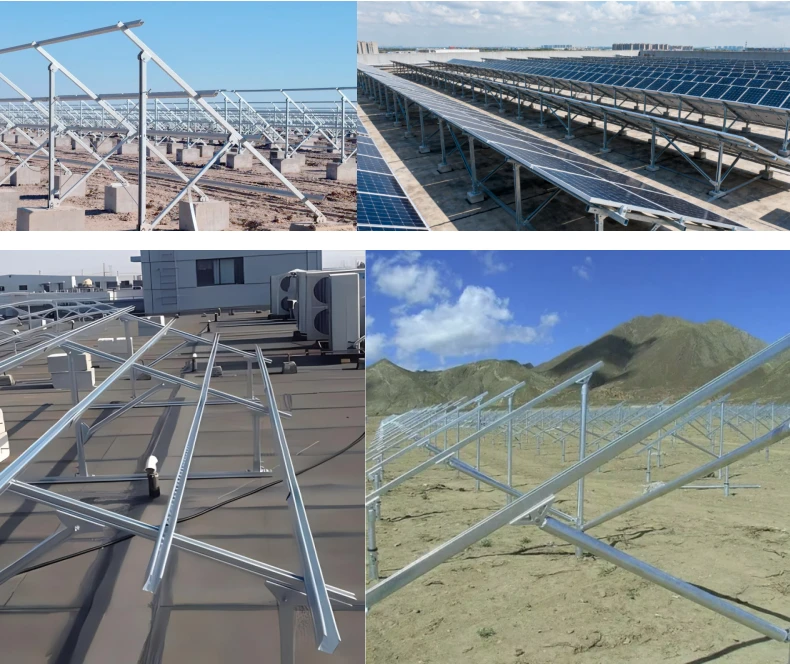

These two profiles are widely used in solar mounting structures and related metal support applications.
Lightweight Solar Channel Roll Forming Solution
One of the key advantages of this Solar Channel Machine is its lightweight and practical design.
Compared with large multi-profile roll forming systems, this machine is designed around a focused production requirement. It is suitable for manufacturers who mainly need 41×41mm and 41×21mm solar channels and want to avoid unnecessary equipment complexity.
The compact machine configuration can help customers:
- Reduce initial equipment investment
- Save factory floor space
- Simplify machine operation
- Reduce unnecessary production components
- Achieve stable production of standard solar channels
- Improve manufacturing efficiency
For small and medium-sized solar mounting component manufacturers, this focused configuration can be an efficient choice.
Two Solar Channel Sizes in One Production Solution
The machine is designed to produce two commonly used solar channel profiles:
41×41mm Solar Channel
The 41×41mm solar channel provides a stronger and deeper structural profile and can be used in solar mounting structures where higher structural support is required.
41×21mm Solar Channel
The 41×21mm solar channel has a lower profile and is suitable for applications where a more compact mounting channel is required.
By configuring the roll forming system for these two specifications, manufacturers can cover different solar mounting requirements with one dedicated production solution.
2.0mm Material Thickness
This Solar Channel Machine is designed for producing profiles with a 2.0mm material thickness.
A 2.0mm steel strip provides a balance between structural strength, material consumption, and production efficiency, making it suitable for many solar mounting applications.
The actual material type, coil width, yield strength, and other parameters can be customized according to the customer's production requirements.
The main technical parameters of Solar Channel Machine
| Item | Specification |
| Machine Type | Solar Channel Roll Forming Machine |
| Main Application | Solar Mounting Channel Production |
| Profile 1 | 41×41mm |
| Profile 2 | 41×21mm |
| Material Thickness | 2.0mm |
| Forming Method | Continuous Roll Forming |
| Material | Galvanied Steel Coil |
| Production | Customized According to Requirements |
| Punching | Hydraulic fly punching |
| Cutting | Hydraulic fly cutting |
| Control System | PLC Control |
| Machine Structure | Lightweight / Compact Configuration |
| Working speed | Around 15m/min |
| Shaft diameter | 60mm |
| Shaft material | C45 steel |
| Roller material | Cr12 steel,quenched treatment, HRC58-62 |
| Rolling stations | 16 rolling stations |

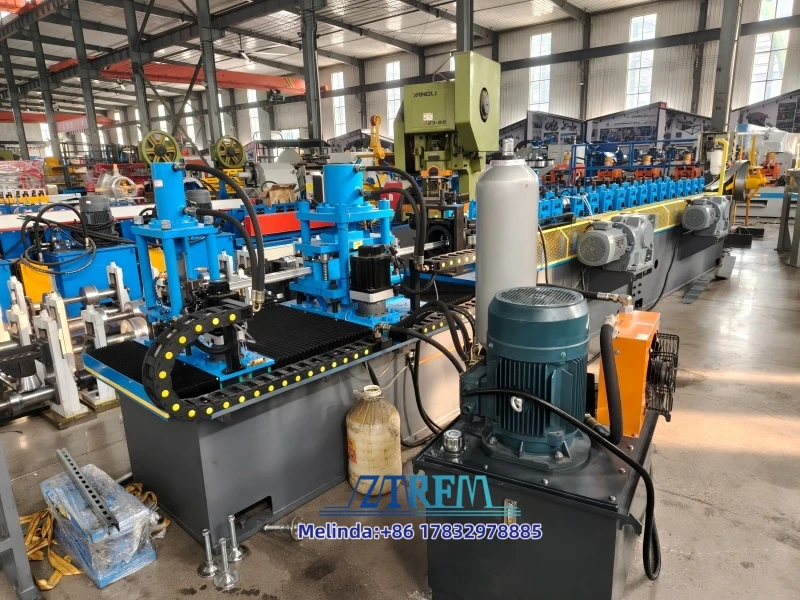

The feature of our solar channel machine
- One machine can produce 41x21mm and 41x41mm, changing size is easy to adjust some spacers.

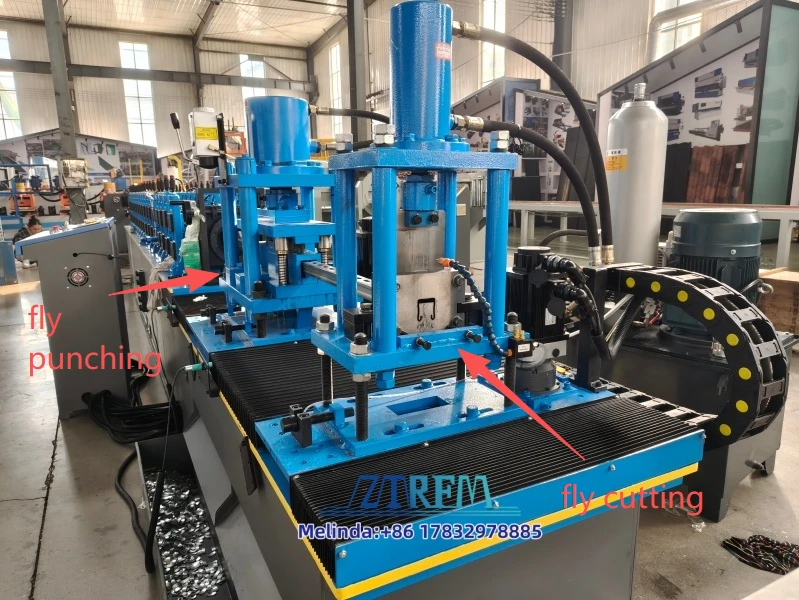

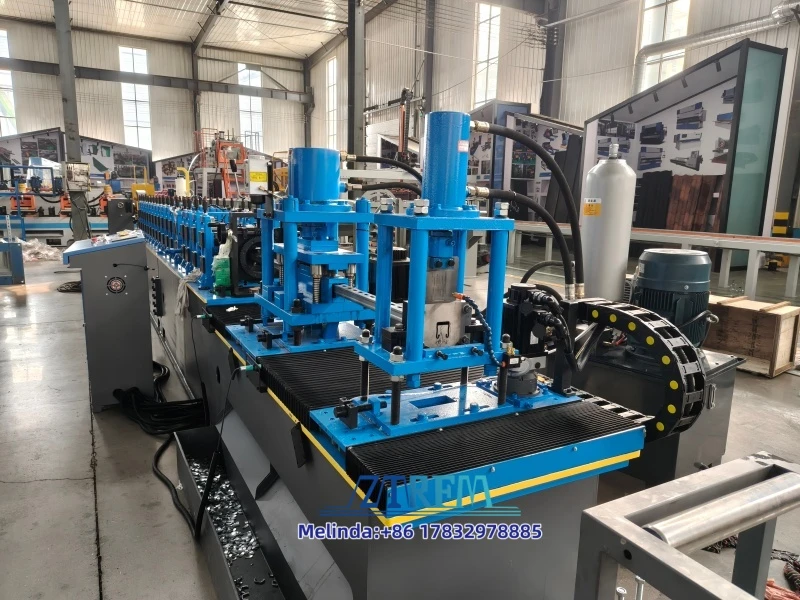

- Fly punching and fly cutting
- Speed up to 15m/min
- Process logo according to client's request

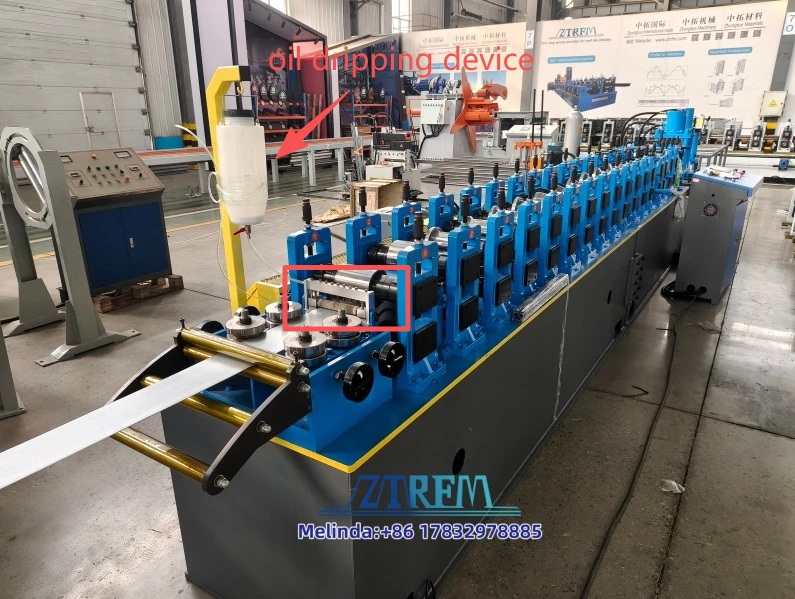

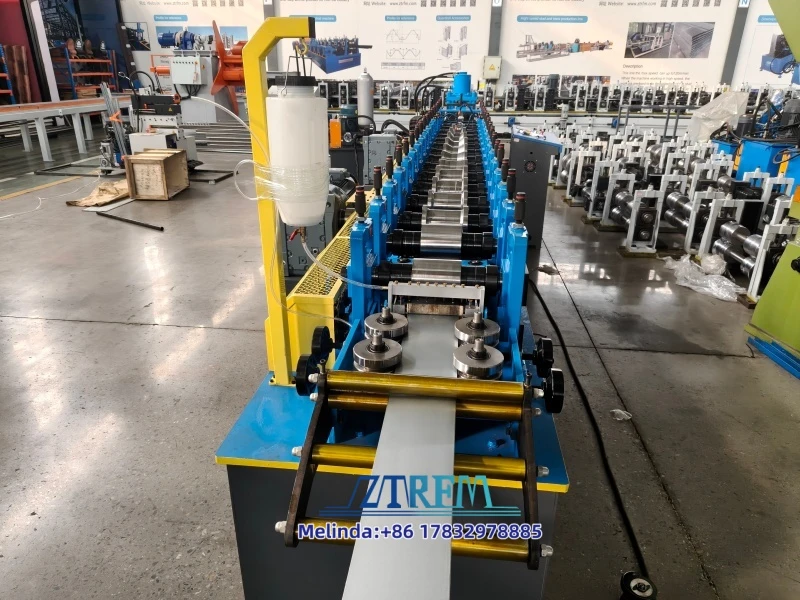

- Feeding device with oil dripping device.
- Transmission by chains
- Cast iron arch frame, it is very stable and durable
- The cutting length is adjustable, everytime will don't cut at the holes position
Why Choose a Dedicated Solar Channel Machine?
For manufacturers whose main products are 41×41mm and 41×21mm solar channels, a dedicated machine can provide a more straightforward production solution.
Rather than purchasing a large multi-profile machine with many unnecessary functions, a focused Solar Channel Machine can be designed around the profiles you actually manufacture.
This approach can help manufacturers optimize:
Machine Investment + Factory Space + Production Efficiency + Operation Convenience
Our engineering team can also design the roll forming line according to your required profile drawings, material specifications, punching patterns, and finished product lengths.
FAQ
1. What is a Solar Channel Machine?
A Solar Channel Machine is a roll forming machine designed to continuously produce steel channels used in photovoltaic solar mounting systems. It forms steel coils into specific solar channel profiles through a series of forming rollers.
2. What sizes can this Solar Channel Machine produce?
This machine is designed to produce two solar channel sizes:
- 41×41mm solar channel
- 41×21mm solar channel
The machine can be configured according to the required profile drawings and production specifications.
3. What material thickness can the Solar Channel Machine produce?
This machine is designed for a 2.0mm material thickness. The suitable material type and mechanical properties can be confirmed according to the customer's actual steel coil specifications.
4. Is this Solar Channel Machine suitable for lightweight production?
Yes. This is a lightweight and compact Solar Channel Machine designed for customers who mainly need to produce 41×41mm and 41×21mm solar channels.
Its relatively compact configuration can help reduce workshop space requirements and equipment investment.
5. Can one machine produce both 41×41mm and 41×21mm channels?
Yes. The machine can be designed to produce both 41×41mm and 41×21mm profiles. The exact changeover method depends on the final machine configuration and customer's production requirements.
6. Can the Solar Channel Machine punch holes?
Yes. A punching system can be integrated into the production line according to the customer's requirements.
The punching pattern, hole size, hole spacing, and punching position can be customized based on the solar channel drawing.
7. Can the machine cut solar channels to different lengths?
Yes. The cutting system can be configured to cut the finished solar channels to the required length. Customers can provide their required finished product lengths when requesting a quotation.
8. What is the production process of the Solar Channel Machine?
The typical production process is:
Decoiling → Feeding → Roll Forming → Punching → Cutting → Finished Solar Channel
The steel coil is continuously fed into the machine and gradually formed into the required 41×41mm or 41×21mm solar channel.
9. What materials can be used for solar channel production?
The machine is mainly designed for steel coils suitable for roll forming. Common material options may include galvanized steel and other steel materials suitable for solar mounting structures.
The final material specification should be confirmed before machine production.
10. Is the Solar Channel Machine easy to operate?
Yes. The machine is equipped with a PLC-based control system, making the production process straightforward to operate.
After installation and commissioning, operators can control the main production functions through the control panel.
11. Can the Solar Channel Machine be customized?
Yes. The machine can be customized according to your profile drawing, material thickness, material type, punching pattern, cutting length, production speed, and workshop requirements.
We recommend providing a detailed profile drawing before confirming the machine configuration.
12. How much factory space is required for the machine?
The required space depends on the final configuration, including the decoiler, roll forming machine, punching system, cutting system, and finished-product handling area.
Because this model is designed as a lightweight solar channel production solution, it can be configured to occupy relatively limited workshop space.
13. How do I choose the right Solar Channel Machine?
When selecting a Solar Channel Machine, you should provide the following information:
- Solar channel profile drawing
- Profile dimensions
- Material type
- Material thickness
- Required production speed
- Punching requirements
- Cutting length
- Voltage and frequency
Based on this information, the machine configuration can be designed to match your production requirements.
14. Can you provide installation and commissioning support?
Yes. Installation and commissioning support can be provided according to the project requirements. Technical documents, operation instructions, and remote assistance can also be provided to help customers start production smoothly.
