Snap lock roofing roll forming machine standing seam machine

by melinda

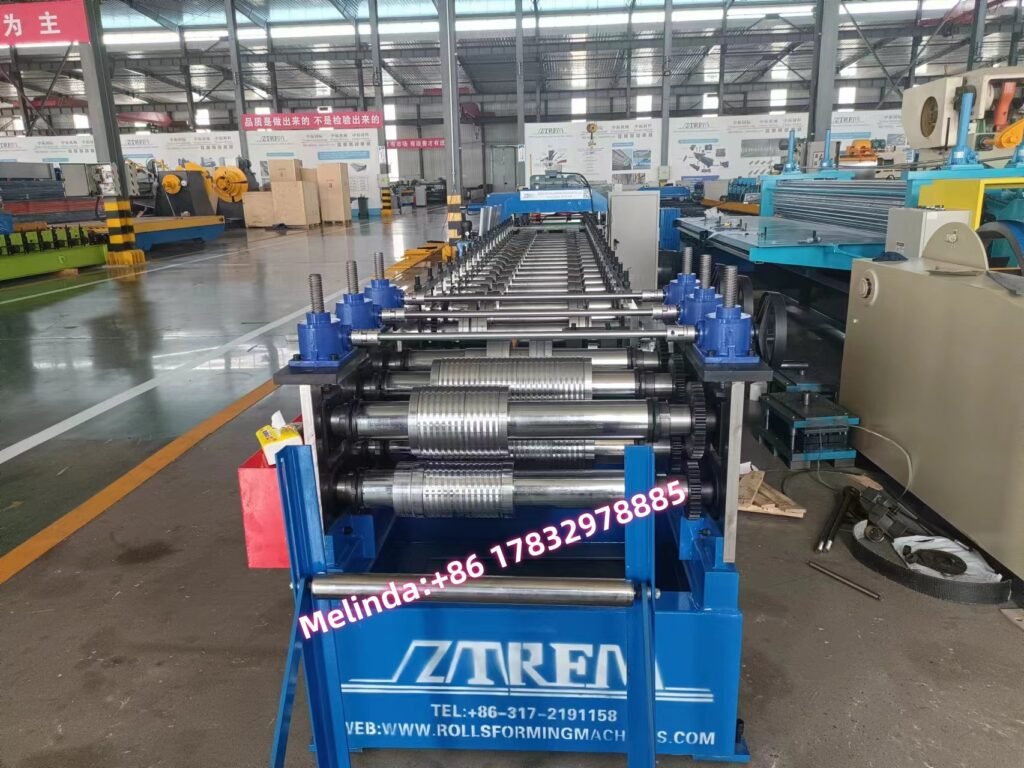

Snap lock roofing sheet is mostly used on warehouses, factories, and other construction buildings. It is easy to install, there are no bolts and nuts on the roofing sheet surface, looks beautiful, and prevents rust from nut holes. This snap lock standing seam machine we made for a Belarusian client, let's introduce the machine details.

1 5 — Snap lock roofing roll forming machine standing seam machine 11

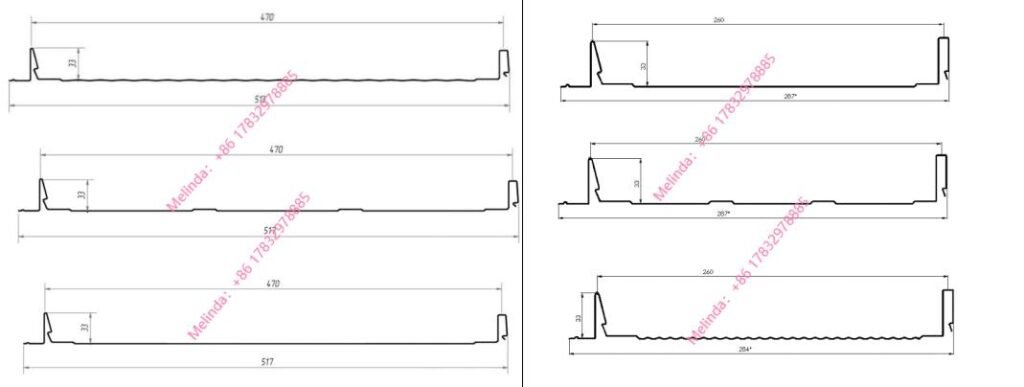

This is an automatically adjustable width snap lock roofing machine, one machine produces multiple sizes, with different ribs. Below are the profile drawings:

1750320334209 — Snap lock roofing roll forming machine standing seam machine 12

Wall cladding snap lock machine main parameters:

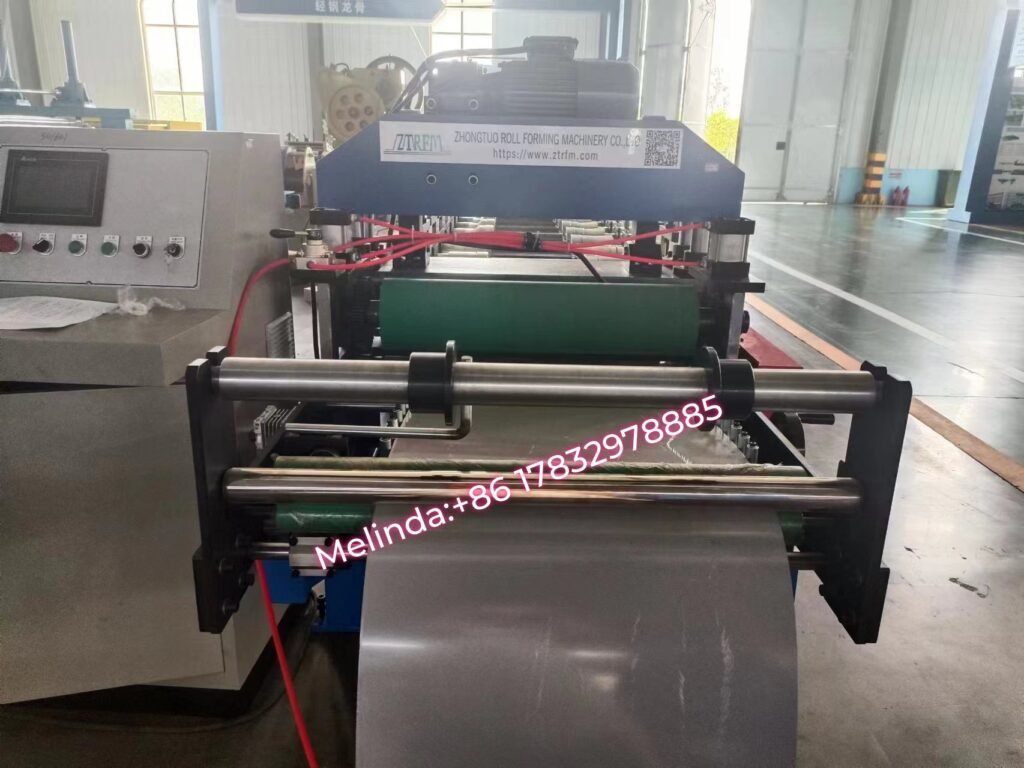

Feeding device & pre cutter

One set of feeding and guiding rollers ensures steel sheet enters into roll forming machine smoothly. Feeding width is adjustable.
With one set of film devices.
Pre shearing, electric motor power 3 kW.

9682850037c5853fa48829270dcc4ad — Snap lock roofing roll forming machine standing seam machine 13

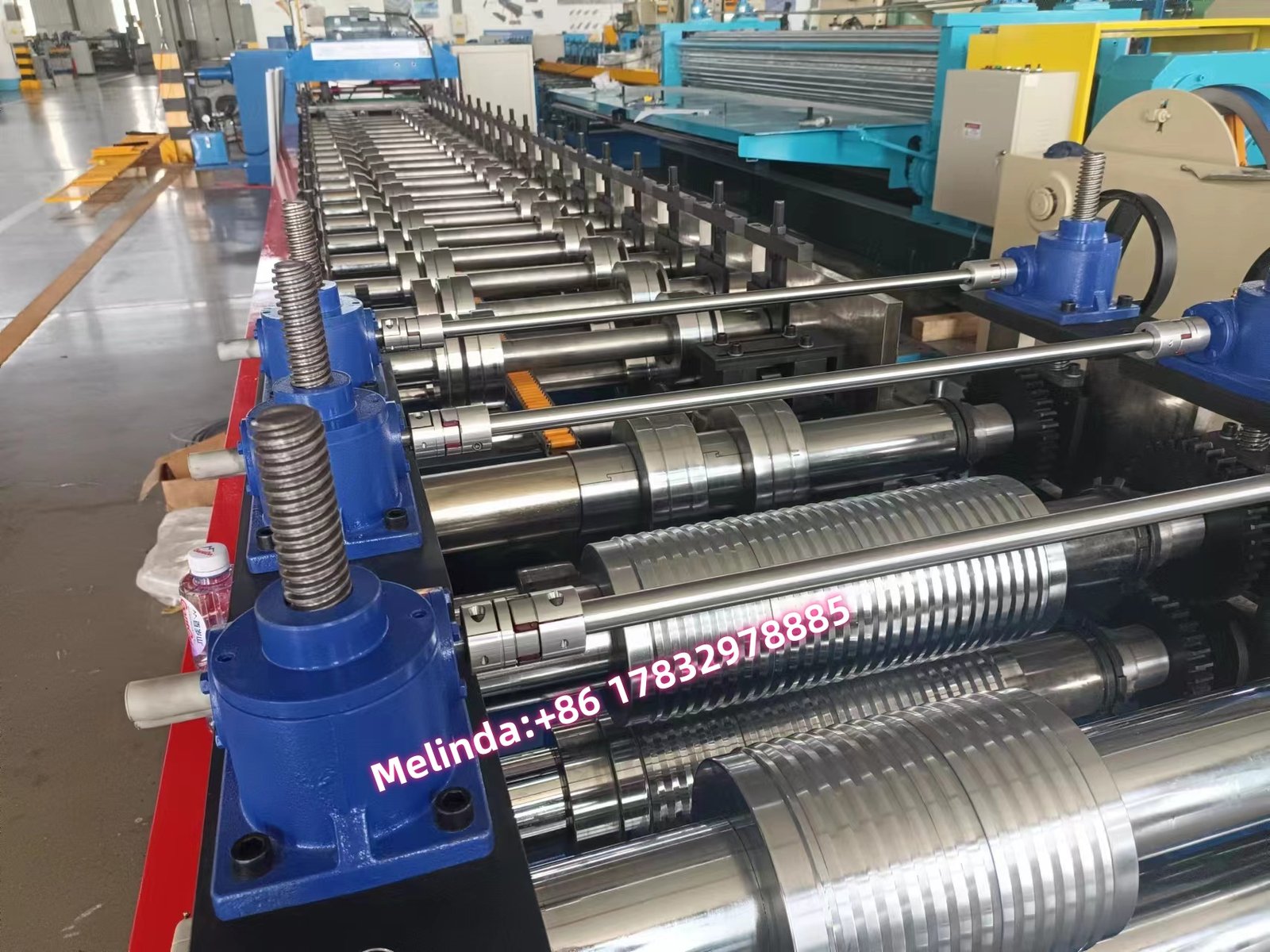

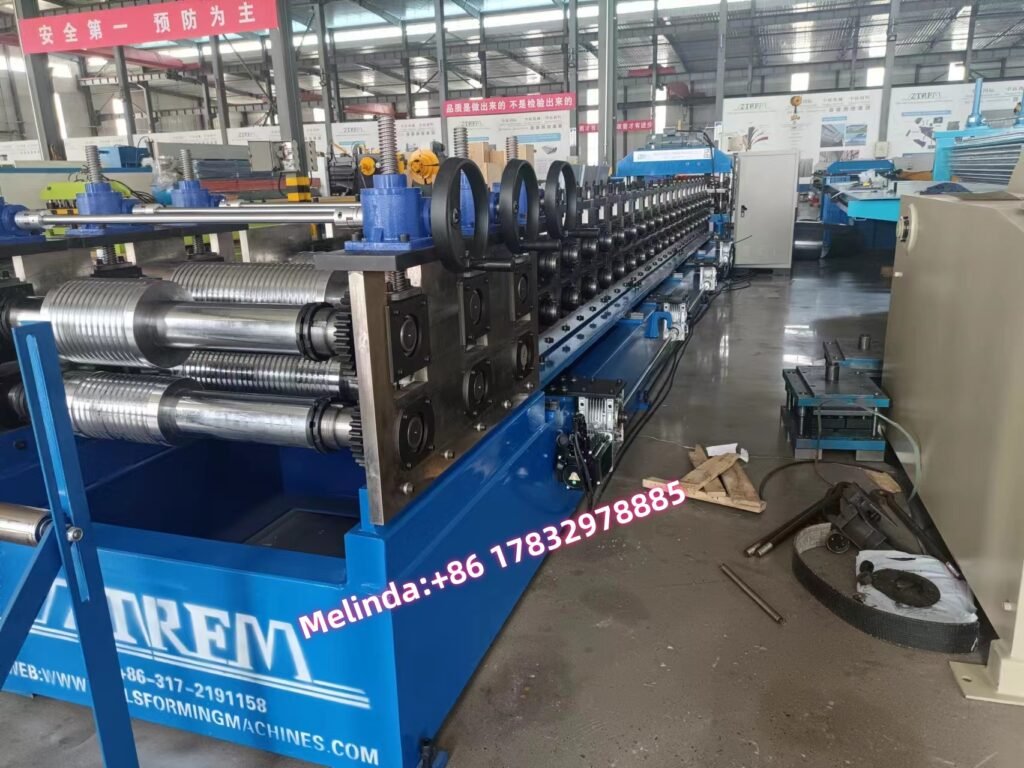

2. Snap lock main forming machine

Rolling shaft: Material 45#, Shaft diameter 70mm; fine processing, double lock system

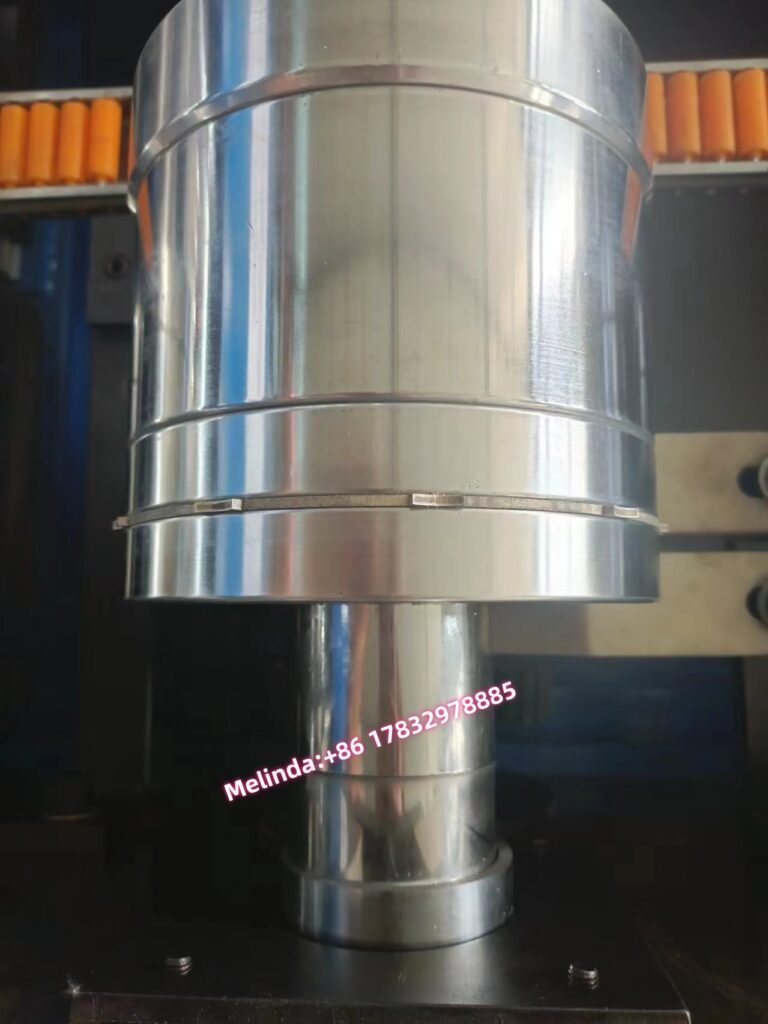

Roller: 45#, CNC fine processing, chromed, polishing, the surface finish up to mirror standard
Roller station: 20 rolling stations
With a rolling hole device
Work speed: around 8-10m/min, including rolling holes
Machine basic frame: 400H beam welded
Machine structure: medium steel plate welded, thickness 20mm
Main motor power: 7.5 kW

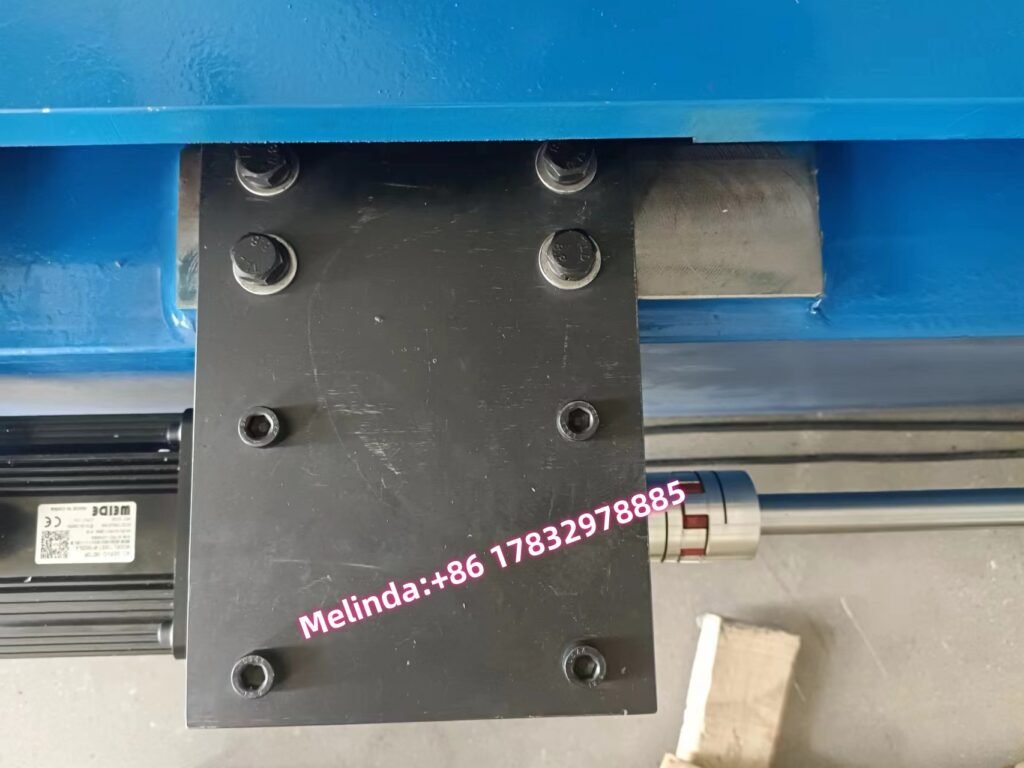

Adjust width: automatic adjustment by motor, power 0.75kw*2 sets + 1.5kw *1set
Transmission: by double chains

Snap lock roofing roll forming machine standing seam machine 14

Snap lock roofing roll forming machine standing seam machine 15

Snap lock roofing roll forming machine standing seam machine 16

Snap lock roofing roll forming machine standing seam machine 17

3. Electric system

Inverter brand: Delta brand
PLC brand: Delta brand
Low-pressure electric part: Schneider brand
Encoder: Omron brand
Screen type: Touch screen, also has buttons on the panel
Provide a log of completed orders, keep 10-14 days
Cut command: Yes
Profile length set-up: Yes
Batch quantity program: Yes

This standing seam forming machine can produce multiple sizes, but every size with different ribs. How to produce the ribs?

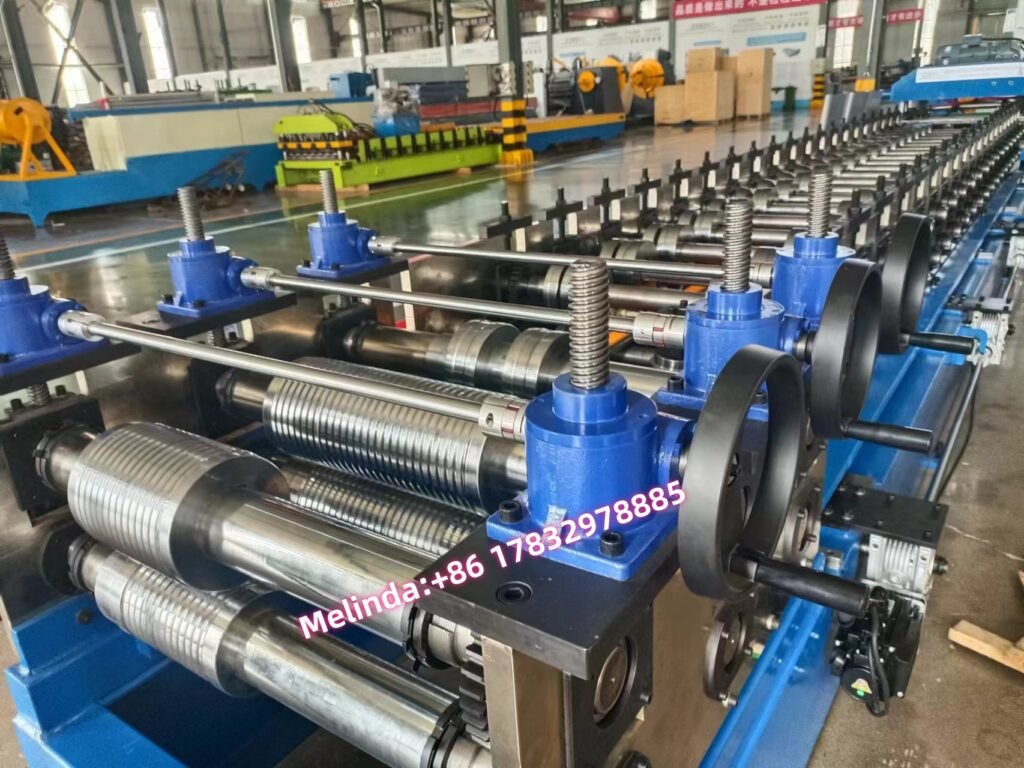

There are 3 rolling stations at the end of the forming machine, used to press the ribs. Clients can choose which rolling station to use, depending on the order request. The gap between the up and down rollers is adjustable through the manual wheel.
