What Is a Metal Coil Cut to Length Line?
A metal coil cut to length line is an automated production system that converts a continuous metal coil into flat metal sheets with customized lengths.
Unlike traditional manual cutting methods, the complete process can be integrated into one production line. The metal coil is loaded onto the decoiler, leveled to remove coil memory and deformation, accurately measured, and then cut into individual sheets.
Depending on the production requirements, the line can be configured with different coil widths, thickness ranges, cutting methods, speeds, and automation levels.
How Does the Metal Coil Cut to Length Line Work?
A typical metal coil cut to length line consists of several key sections:

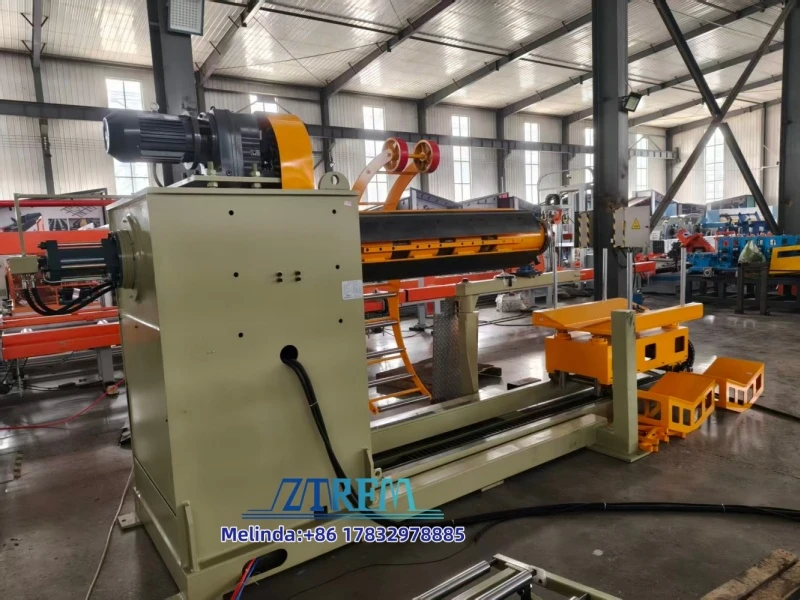

1. Hydraulic Decoiler
The decoiler supports and unwinds the metal coil continuously. A hydraulic expansion system can provide stable coil feeding and improve production efficiency.
The capacity of this decoiler is 10 tons.

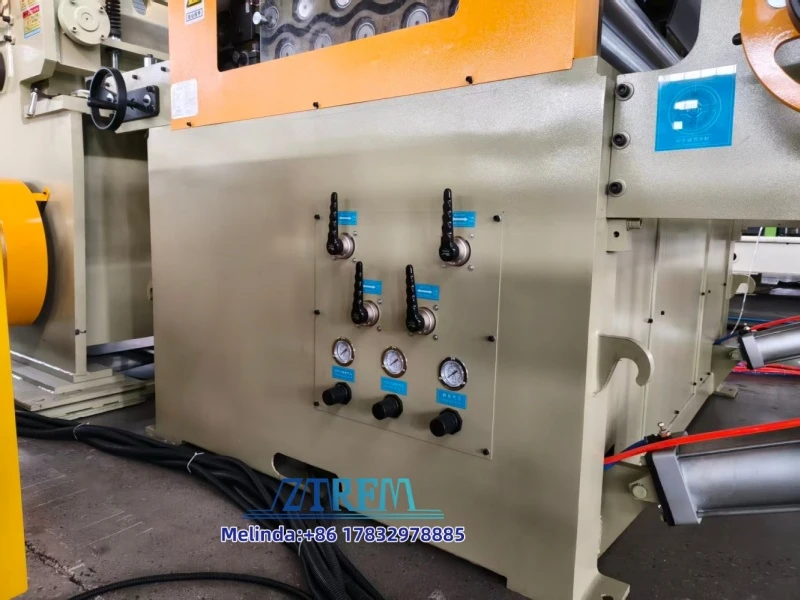

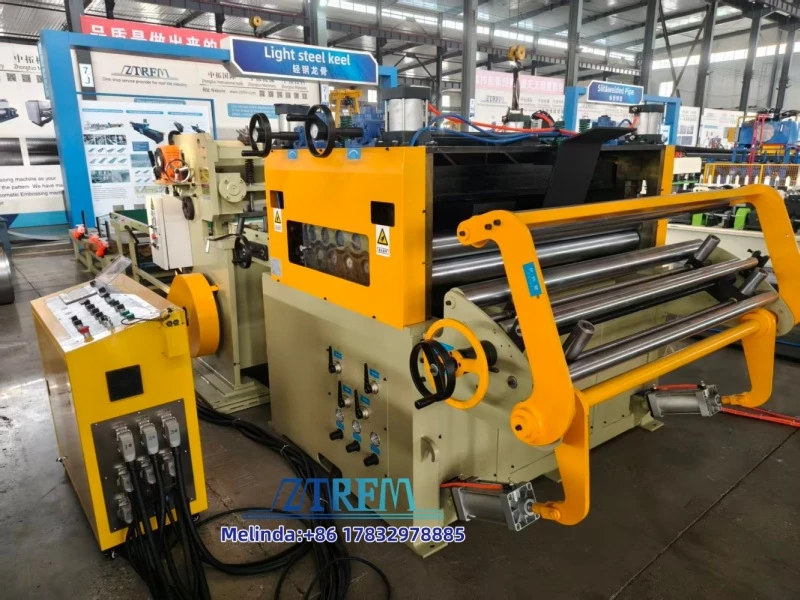

2. Straightening and Leveling System
The leveling machine removes bending, wave, and residual stress from the coil. This ensures that the finished sheets are flat and suitable for further fabrication.

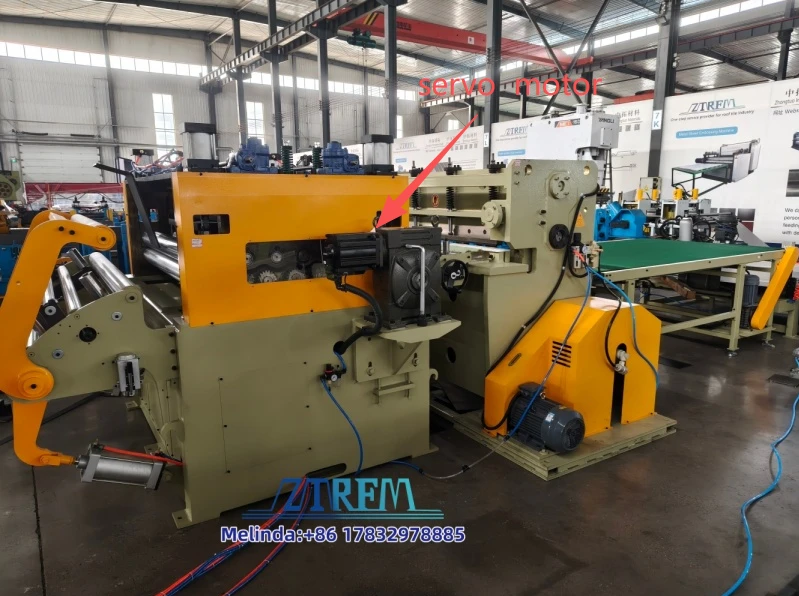

Driven by servo motor. It is fast speed and more accurate.

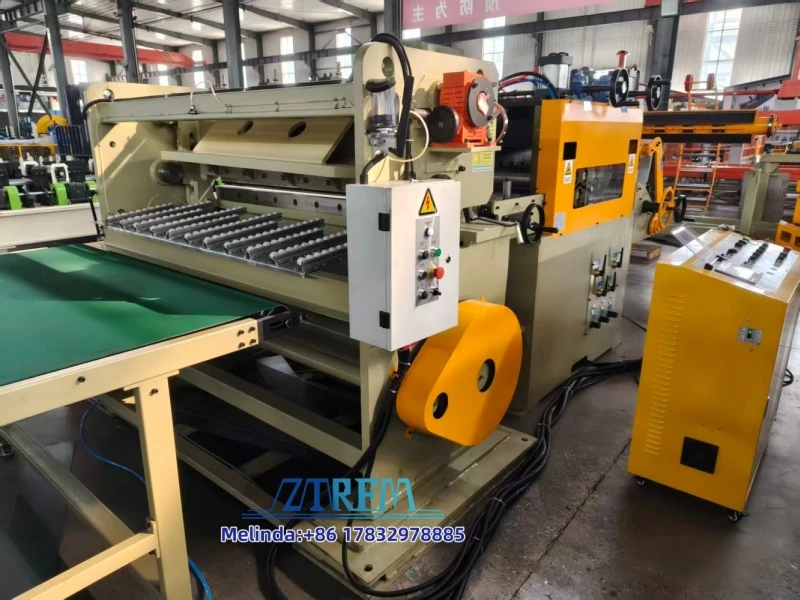

3. Shearing System
The cutting unit separates the continuous strip into individual sheets according to the preset length. Different cutting configurations can be selected based on material thickness and production speed.

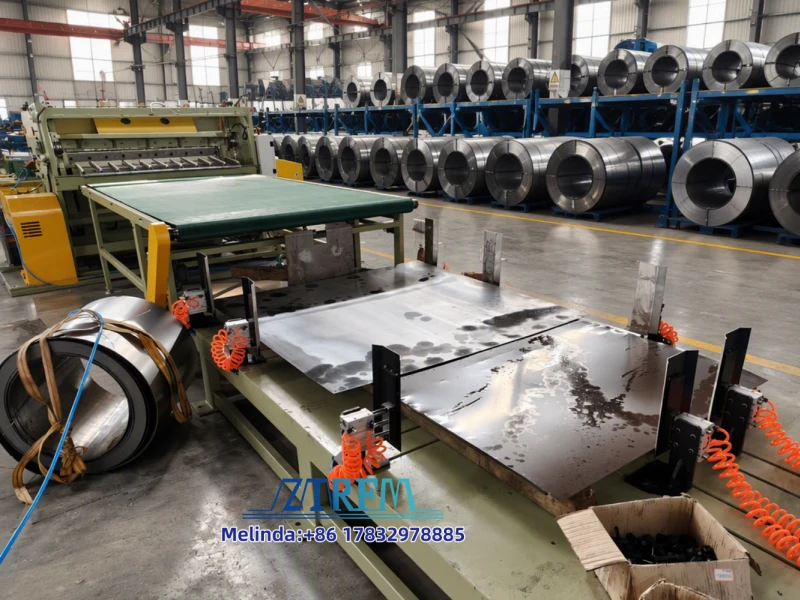

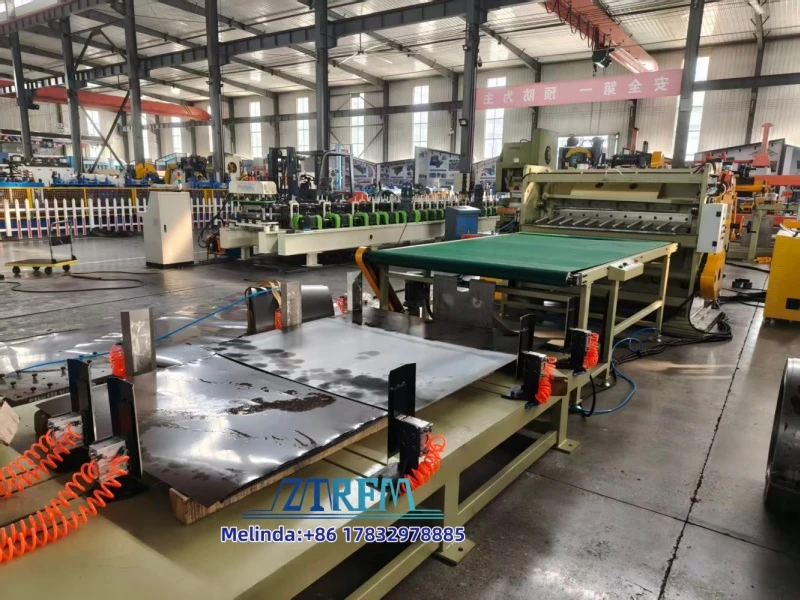

4. Automatic Stacking System
After cutting, the finished sheets are automatically collected and stacked neatly. This reduces manual handling and makes subsequent packaging and transportation easier.
The working flow of the metal coil cut to length line
hydraulic decoiler----leveling machine------shearing machine-------transport table-----automatic stacker
The main parameters of the metal coil cut to length line
| decoiler | coil width | 300-1500mm |
| coil innder diameter | 508mm | |
| coil outer diameter | 1600mm | |
| max coil weight | 10 tons | |
| Hydraulic motor power | 5.5kw | |
| leveler | Leveling rollers | Up 5 + down 6 |
| Release method of the feeding roller | Cylinder relaxation | |
| Servo motor | 7.5kw | |
| The upper roller adjustment method | manually | |
| Cutting machine | Cutting thickness | 2.0mm |
| Cutting sheet width | 300-1500mm | |
| angle | 1°20′ | |
| Cutting times | 70 times/min（empty testing） | |
| strcture | Upward moving type | |
| Conveyor | The width of the sheet it can carry | 300-1500mm |
| Reducer | 1.5kw | |
| belt | 3mm PVC Oil-resistant belt | |
| length | 3000mm | |
| Open-type stacker | plate blocking adjustment method | manually |
| The method of pushing plate | Pnematic | |
| Lifting way | By hydraulic | |
| Drive mode of the rolling discharge platform | By hydraulic | |
| Rolling discharge speed | 3m/min |
Applications of Metal Coil Cut to Length Line

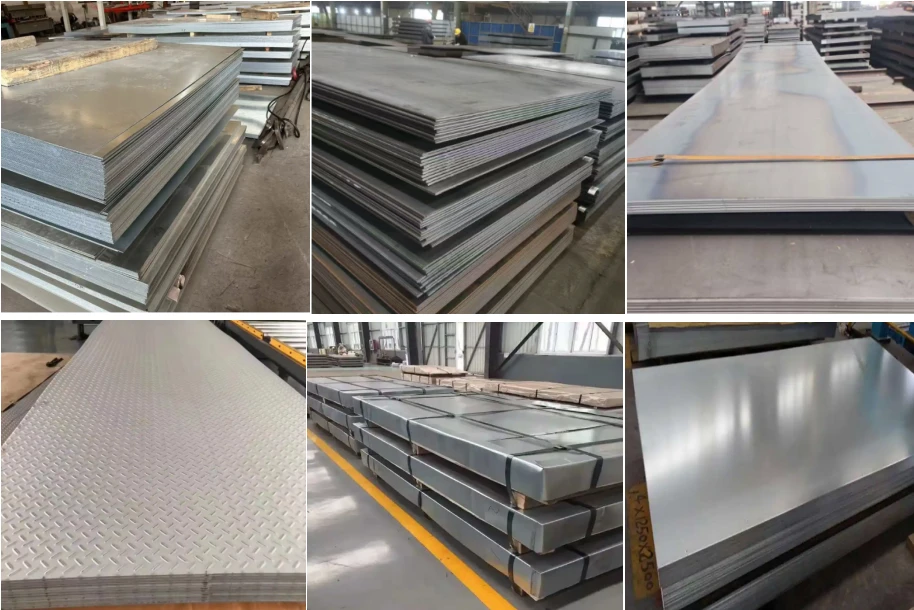

A metal coil cut to length line is widely used in industries that require flat metal sheets with accurate dimensions.
Construction Industry
Cut-to-length steel sheets are widely used for roofing, wall systems, structural components, doors, panels, and other construction applications.
HVAC Manufacturing
Metal sheets produced by the line can be used for air ducts, ventilation systems, HVAC housings, and related components.
Automotive Industry
The equipment can be used for preparing metal sheets and blanks for automotive components and other transportation-related products.
Electrical Cabinet Manufacturing
Accurately cut metal sheets are commonly used in electrical enclosures, control cabinets, distribution boxes, and industrial equipment housings.
Metal Fabrication
Fabrication companies can use the metal coil cut to length line to produce customized sheet sizes for bending, punching, welding, laser cutting, and other downstream processes.
Customized Metal Coil Cut to Length Solutions
Every manufacturer has different production requirements. Therefore, a metal coil cut to length line can be customized according to material type, coil weight, coil width, material thickness, cutting length, production speed, and required automation level.
Optional configurations may include:
- Hydraulic decoiler
- Automatic coil loading system
- Servo feeding system
- High-precision leveling machine
- Flying shear or guillotine shear
- Pneumatic or hydraulic cutting system
- Automatic sheet stacking system
- PLC control system
- Touch-screen HMI
- Automatic counting system
- Safety protection system
Our engineering team can design a complete production solution according to your raw material specifications and production capacity.
FAQ
1. What is a metal coil cut to length line?
A metal coil cut to length line is an automated machine system designed to process metal coils into flat sheets with precise and customized lengths. The line typically includes decoiling, leveling, servo feeding, cutting, and sheet stacking functions.
2. What materials can a metal coil cut to length line process?
Depending on the machine configuration, a metal coil cut to length line can process various materials, including carbon steel, galvanized steel, stainless steel, aluminum, pre-painted steel, and other metal coils.
3. What thickness of metal coil can the machine process?
The applicable thickness depends on the machine configuration and material type. Different leveling and cutting systems can be designed for different thickness ranges. Please provide your material thickness and type so we can recommend the appropriate configuration.
4. Can the cutting length be customized?
Yes. The metal coil cut to length line can produce metal sheets with different lengths according to your production requirements. The required cutting length can normally be set through the PLC control system or touch-screen HMI.
5. How accurate is the cutting length?
The cutting accuracy depends on the material, thickness, line configuration, feeding system, and production speed. A servo feeding system and precision control system can be used to achieve consistent feeding and cutting accuracy.
6. What is the production speed of a metal coil cut to length line?
Production speed depends on factors such as material thickness, coil width, sheet length, cutting method, and automation level. We can recommend a suitable line configuration according to your required production capacity.
7. Does the machine automatically stack the finished sheets?
Yes. An automatic stacking system can be integrated into the metal coil cut to length line. It collects and arranges the finished sheets neatly, reducing manual handling and improving production efficiency.
8. Can the metal coil cut to length line handle different coil widths?
Yes. The line can be designed according to the required coil width. If you need to process multiple coil widths, the machine configuration can be customized to provide greater production flexibility.
The exact configuration can be adjusted according to the customer's material and production requirements.
9. Is the metal coil cut to length line fully automatic?
The automation level can be customized. A fully automatic configuration can integrate coil loading, decoiling, leveling, feeding, cutting, counting, and stacking, significantly reducing manual operations.
10. How much space is required for the production line?

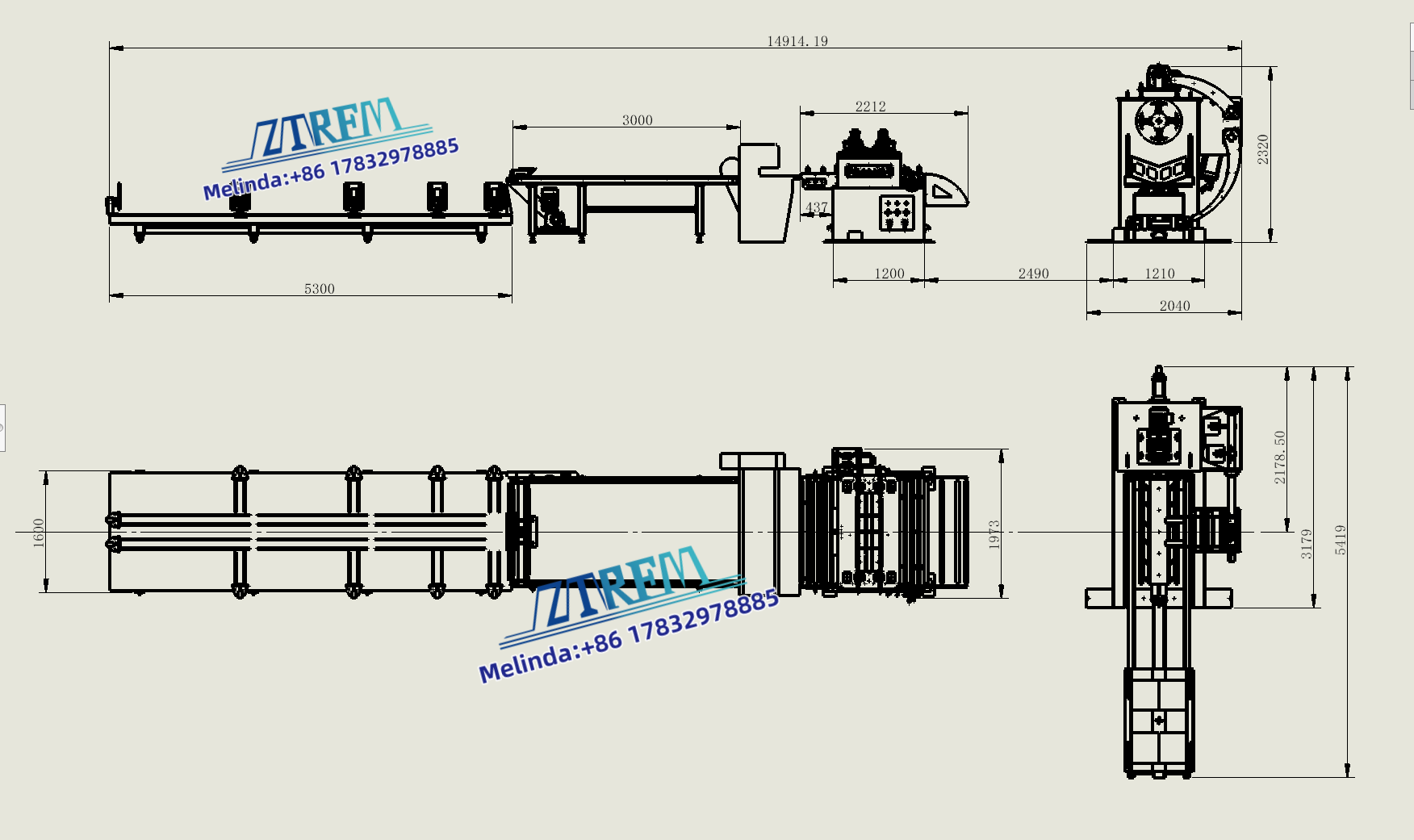

The required installation space depends on the coil width, material thickness, machine configuration, maximum sheet length, and stacking method. We can provide the complete machine layout and recommended workshop dimensions before installation.
