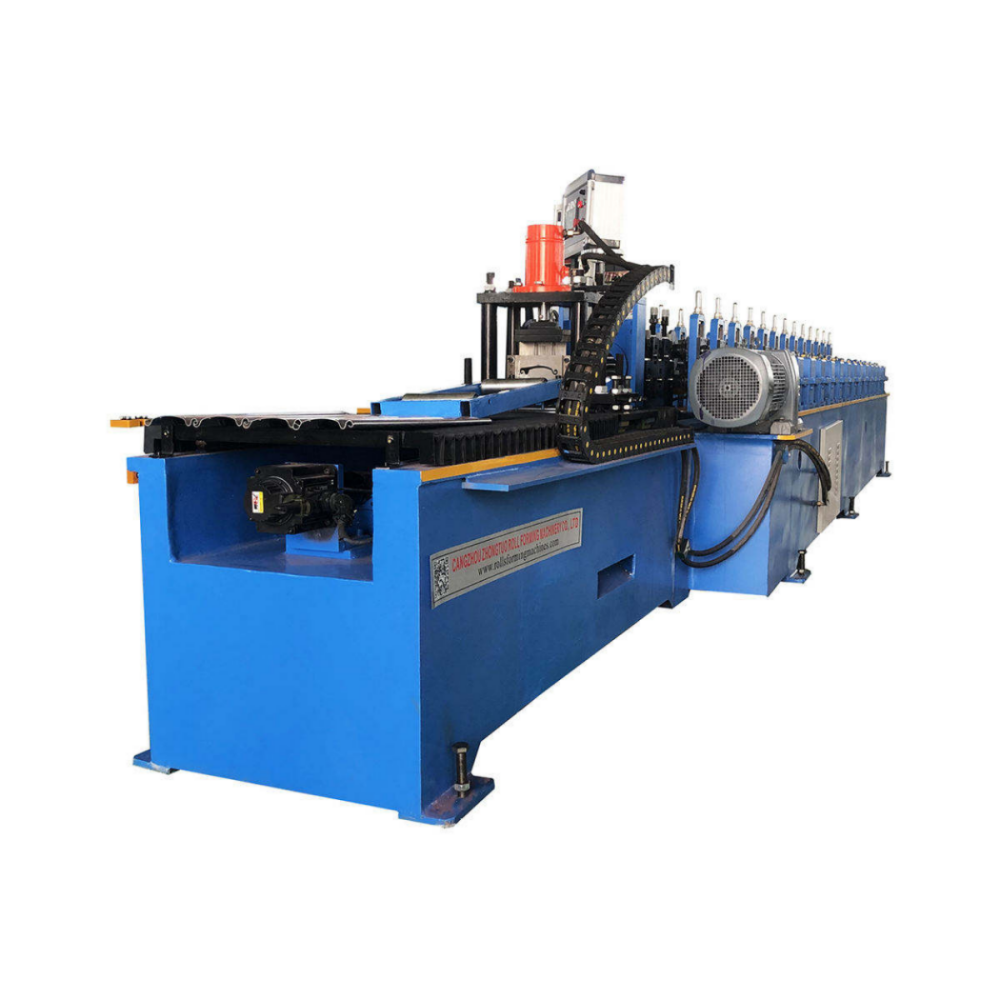

This roller shutter door machine we made for an Algerian client. The raw material is galvanized steel, thickness of 0.8mm to 1.1mm. The profile drawing is shown below:
The main technical parameters of the galvanized steel shutter door slat machine:
- steel strip input width:178mm
- steel thickness:0.8-1.1mm
- machine working speed:25m/min
- The shaft material is high-quality C45 steel, with tempering treatment. The shaft diameter is 60mm.
- The roller material is GCr15 steel or Cr12 steel, quenched treatment, HRC 58-62, with hard chromed.
- There are 14 rolling stations; the machine structure is a cast-iron arch structure.
- Transmission by chains.
- Main driven motor reducer power 7.5KW.
- Fly cutting, driven by a servo motor, power 2.3KW.
- The hydraulic pump motor power is 5.5KW.
Our Cangzhou Zhontuo Roll Forming Machinery Co., LTD. As a professional manufacturer of a shutter door-making machine, we exported many similar shutter door slat roll forming machines to different countries.
